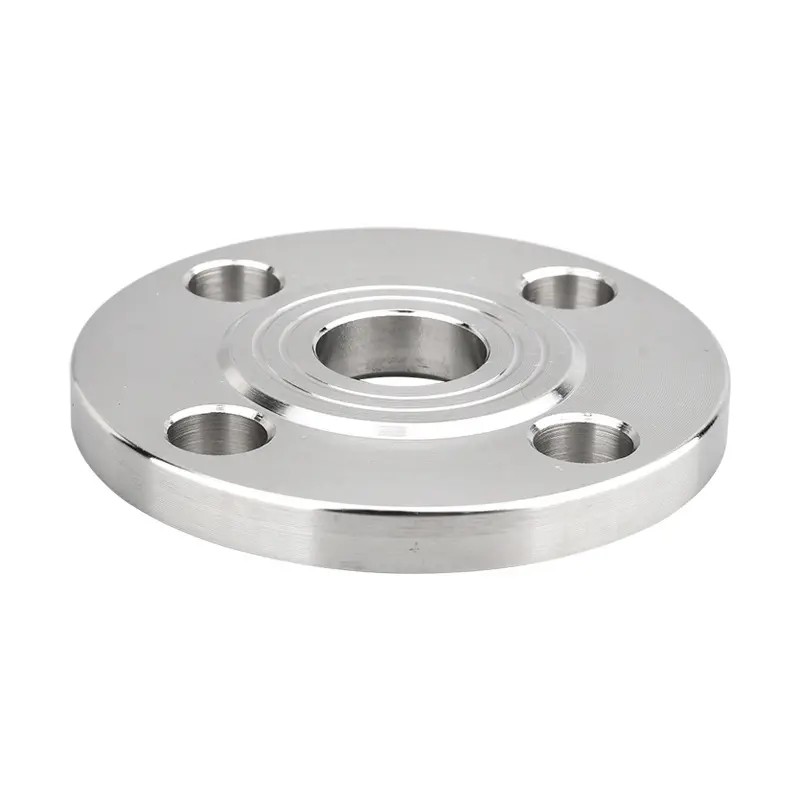

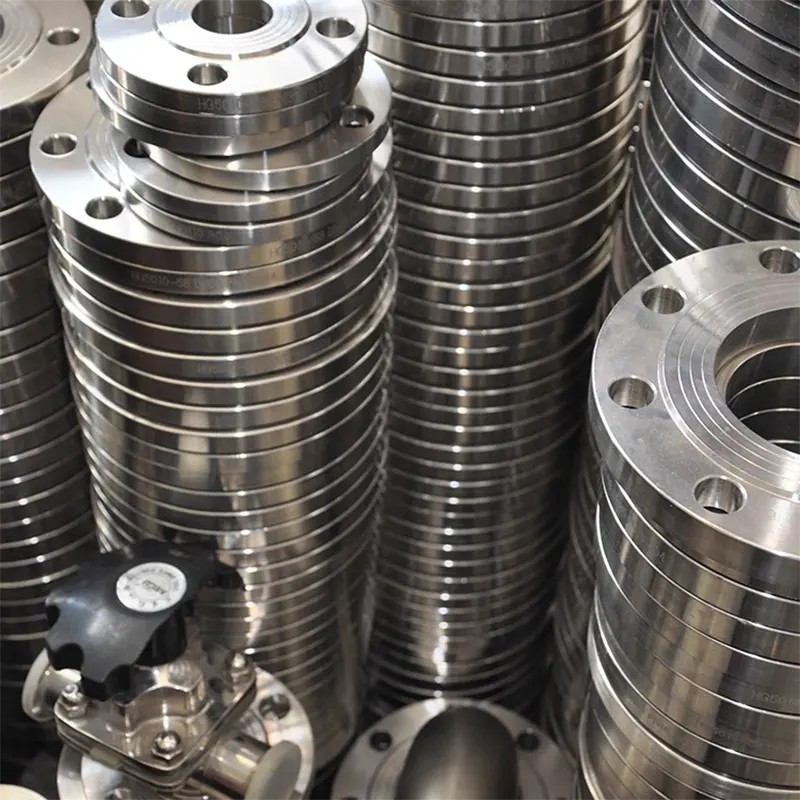

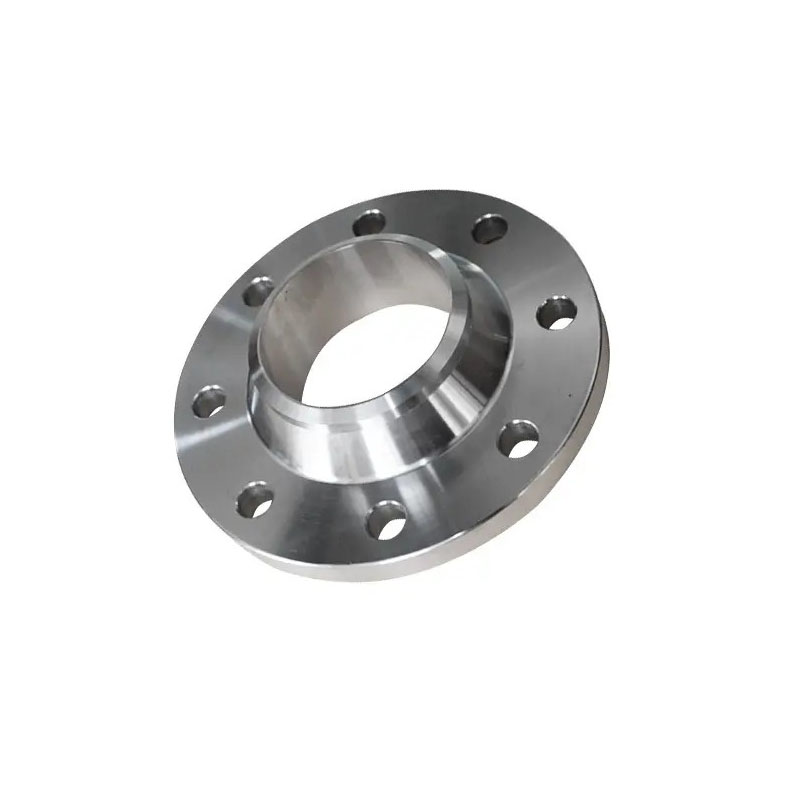

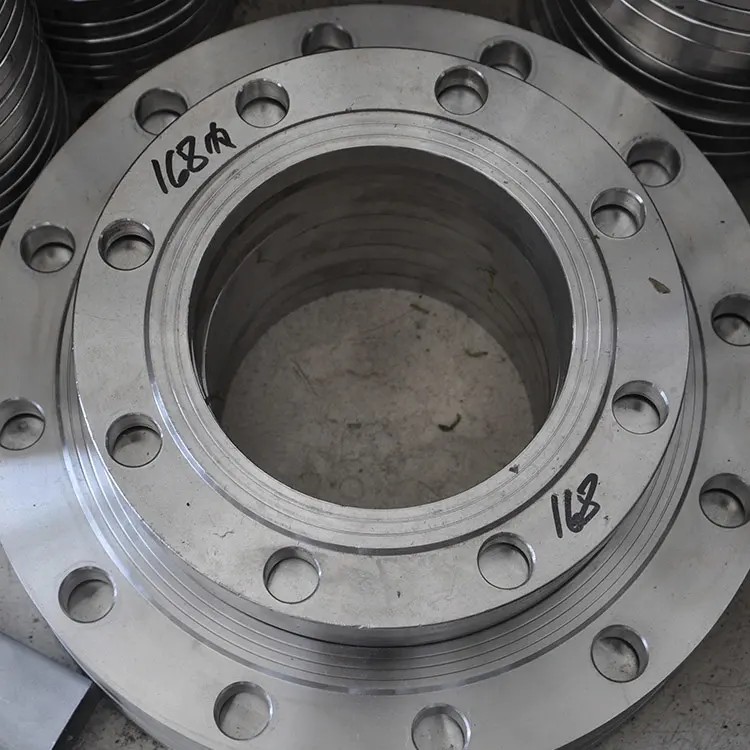

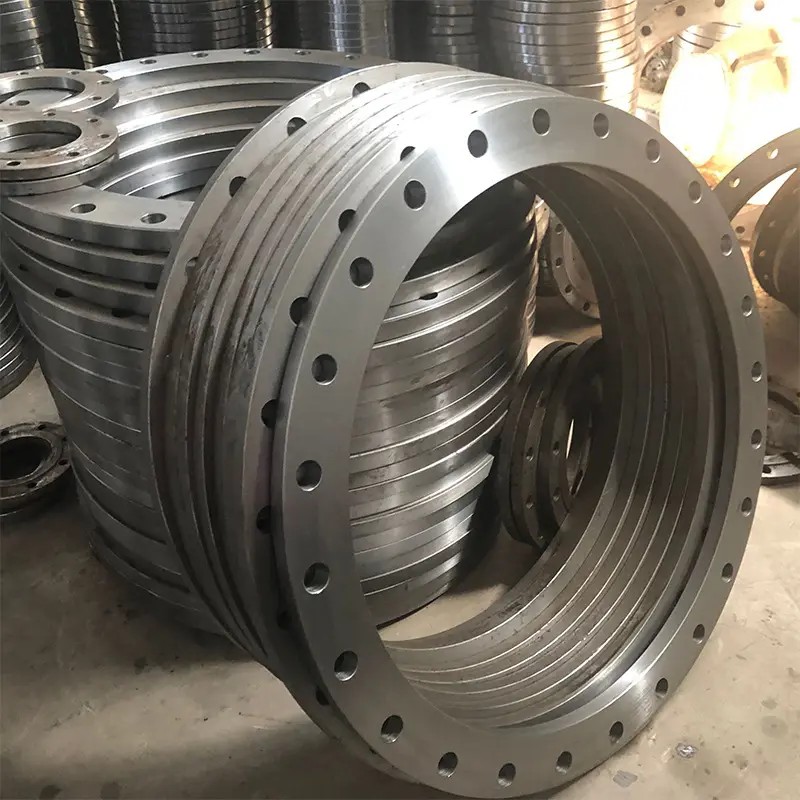

Casting Iron Threaded Pipe Fitting Flange Cast Iron Flange is a cast iron part commonly used for pipe connection. It is used to connect two cast iron pipes and usually includes flanges, bolts, gaskets and other components. In the piping system, cast iron flanges are mainly used to connect and support pipes. In applications such as negative pressure, circulation and heating systems, it also plays a key role.
Connection:Flange
Product name:Single Sphere Rubber Expansion Joint
Application:Air, Water, Oil, Weak Acid and Alkali, Juice etc
Material of Flange:Stainless Steel 304,316 etc
Rubber joints are mainly used in food pipelines, so the material of food-grade rubber soft joints must be non-toxic and odorless.All the rubber joints produced by our company are made of imported silicone collagen materials. Using scientific production technology, the batch method is used to produce raw rubber, aiming at the high tear resistance and high transparency of gas-phase rubber, the super-high and low hardness of mixtures, and their functionality. High-quality silica gel tube produced by mixing rubber and other characteristics, this product has a wide range of adaptability.
Specification of Casting Iron Threaded Pipe Fitting Flange Cast Iron Flange
DN(mm) |
Inch(mm) | Length | Axial displacement(mm) | Horizontal displacement | Angle of deflection | ||
Extension | Compression | ||||||
32 | 1 ¼ | 95 | 6 | 9 | 9 | 15° | |
40 | 1 ½ | 95 | 6 | 10 | 9 | 15° | |
50 | 2 | 105 | 7 | 10 | 10 | 15° | |
65 | 2 ½ | 115 | 7 | 13 | 11 | 15° | |
80 | 3 | 135 | 8 | 15 | 12 | 15° | |
100 | 4 | 150 | 10 | 19 | 13 | 15° | |
125 | 5 | 165 | 12 | 19 | 13 | 15° | |
150 | 6 | 180 | 12 | 20 | 14 | 15° | |
200 | 8 | 210 | 16 | 25 | 22 | 15° | |
250 | 10 | 230 | 16 | 25 | 22 | 15° | |
300 | 12 | 245 | 16 | 25 | 22 | 15° | |
350 | 14 | 255 | 16 | 25 | 22 | 15° | |
400 | 16 | 255 | 16 | 25 | 22 | 15° | |
450 | 18 | 255 | 16 | 25 | 22 | 15° | |
500 | 20 | 255 | 16 | 25 | 22 | 15° | |
600 | 24 | 260 | 16 | 25 | 22 | 15° |
FAQ
Q : Are you trading company or manufacturer?
A: We are manufacturer of rubber expansion joint,bellow, dismantling joint, dresser coupling, flange adapter and flange with more than 13-year experience.
Q: Do you have products catalog?
A: Yes, we have. Please tell me your email or instant message, we will send our catalog.
Q: Can you provide drawings and technical data?
A: Yes, our professional technical department will design and provide drawings and technical data.
Q: Do you provide samples? Is it free or charged?
A: Yes, we can offer sample free but shipping charges covered by customer.
Q: How long is your delivery time?
A: Depends on QTY, but normally no more than 20 working days.
Q: Can the products be made by customer's requirement?
A: Yes, the specifications stated above are the standard ones, we can design and manufacture as requirement.
Q: Visiting factory is allowed or not?
A: Yes, we welcome customers visiting our factory. Our factory is located Shandong province,China mainland
