Electric Locomotive for Coke Oven

The Electric Locomotive for Coke Oven includes an automatic braking system, obstacle detection sensors, and an emergency stop function, ensuring safe operation even in the most demanding conditions. In addition, the ergonomic design of the cab provides excellent visibility and comfort, allowing for precise maneuvering and control during material handling operations. This focus on safety and operator comfort helps improve workflow efficiency and reduce the risk of accidents in the workplace.

Coke oven electric locomotive has the following characteristics:

1. Low center of gravity design, with the characteristics of start, stop and high-speed smooth operation;

2. Interior gallery design, easy to get on and off, easy to escape;

3. The transmission system adopts the elastic suspension system for trunk locomotive, which can fully absorb the impact of locomotive movement, improve the smoothness of movement and improve the service life;

4. The brake adopts disc brake, which has the characteristics of sensitive braking and convenient maintenance;

5. The axle box adopts the Hank spring shock-absorbing self-positioning axle box, which has accurate stopping and smooth running;

6. Electromechanical room, cab, air compressor room are independent, do not interfere with each other, good sealing;

The Electric Locomotive for Coke Oven is highly customizable to meet the specific needs of a variety of coke production facilities. It can be customized with different load capacities, track gauges, and operating speeds, making it a versatile solution for a variety of industrial needs. The locomotive's maintenance-friendly design allows easy access to key components, facilitating routine inspections and repairs, ultimately extending its service life.

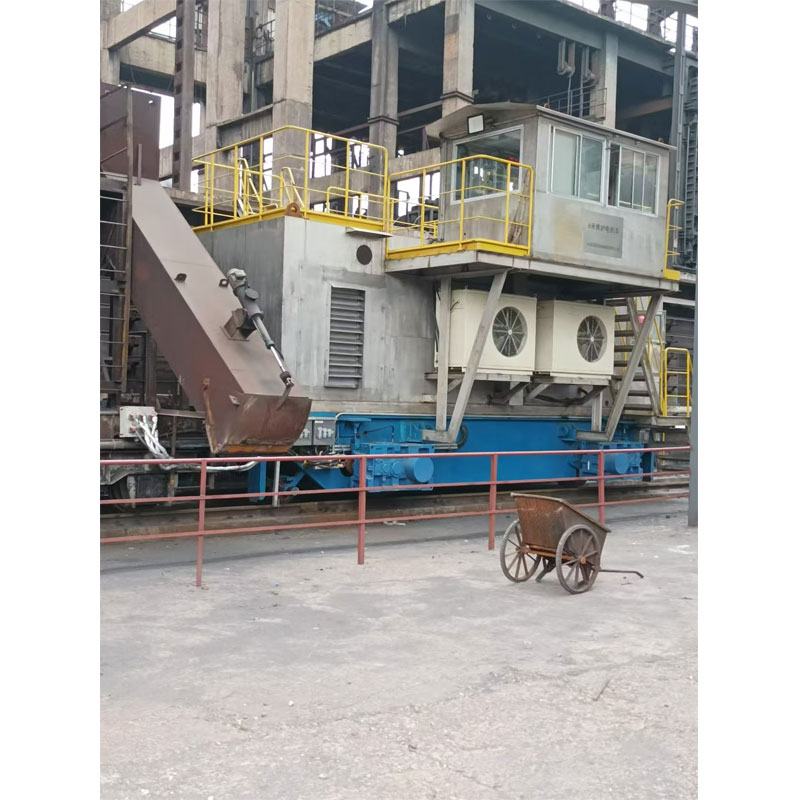

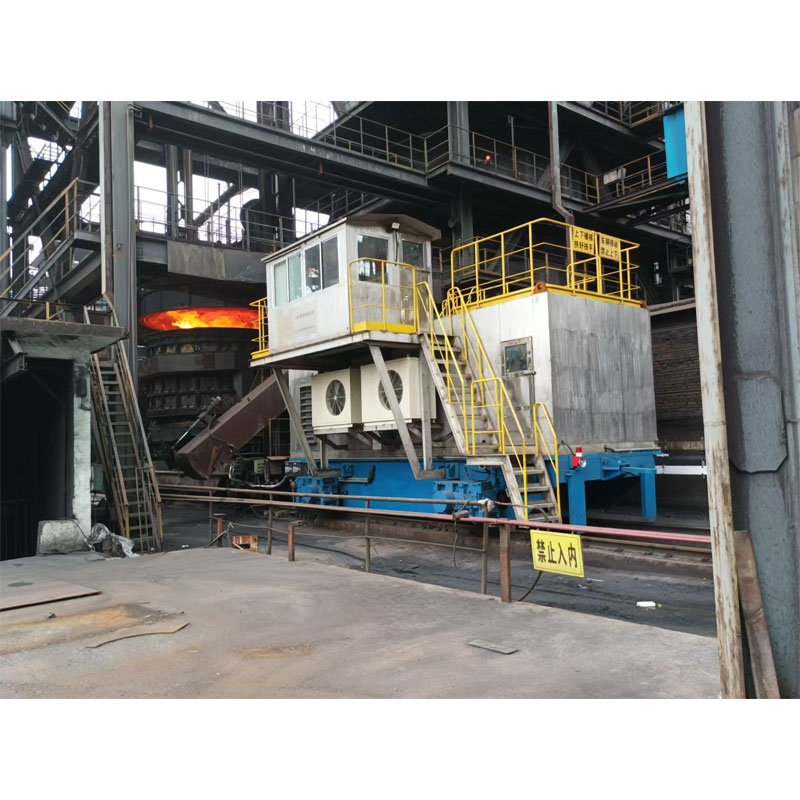

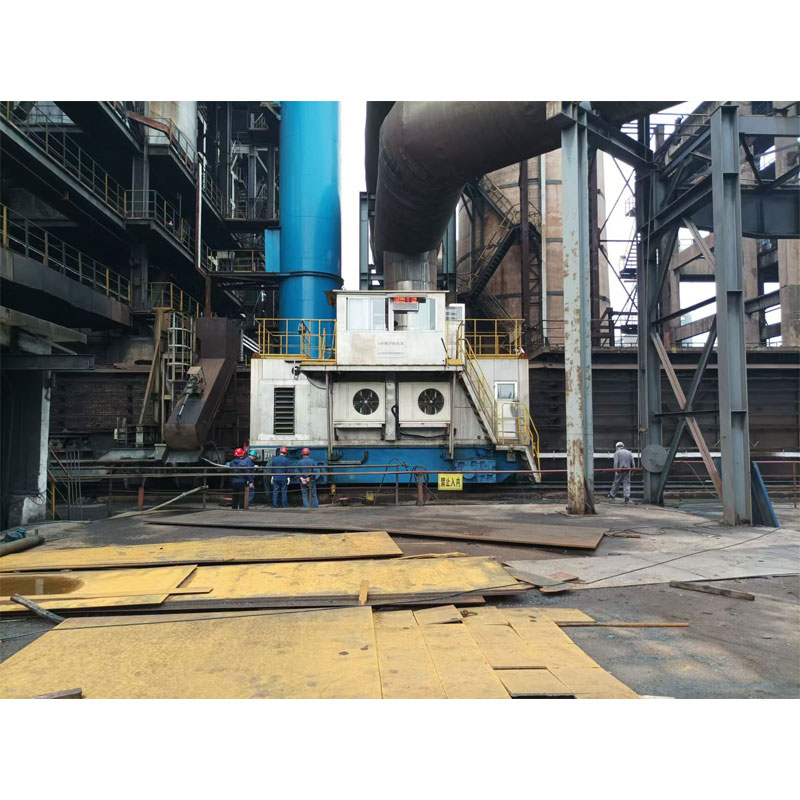

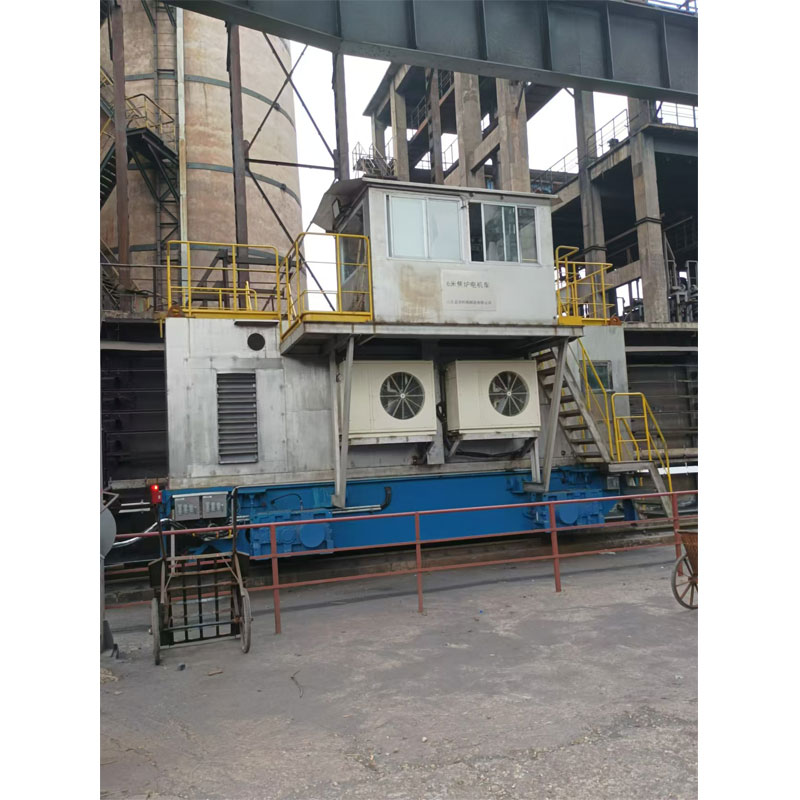

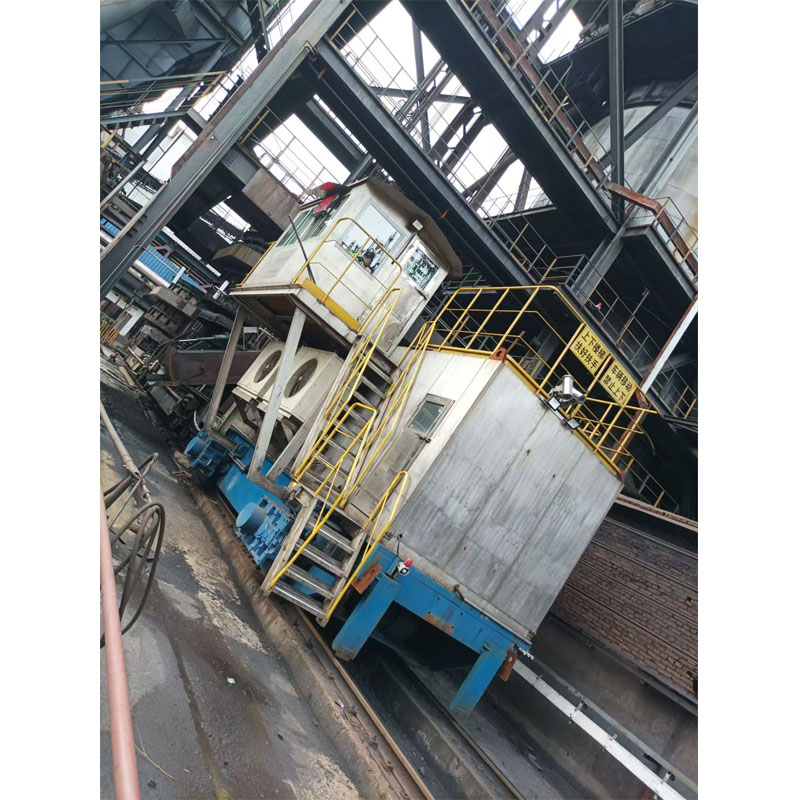

The electric locomotive is mainly composed of the upper body, the lower running device, the brake device, the air circuit system, the air conditioning system and the electrical system. In the motor vehicle, it can directly enter the coke oven side platform through the high walking platform, the driver's cab is placed on the side outside the car, and the line of sight is better, the air compressor is placed in the machine room, the compressor for the chiller is placed outside the driver's room, and two air bags and the power supply slide support are provided on the side near the furnace. The car body is composed of machine room, driver's cab, platform, ladder and railing and other structural parts. Bolts are used between each part, and the connecting parts are welded and fixed after on-site installation. The machine room is a steel structure, the upper part is opened with access holes, convenient maintenance, the side door is opened near the ladder, easy access, the top is covered with pattered steel plate, for the whole vehicle, the top of the machine room is a platform. The cab is supported by the platform and placed on the outside of the car. The roof and side walls of the cab are made of thermal insulation materials, and the inner wall is decorated with colored coated panels. The room is equipped with an operating station, a signal liaison device, and an air conditioner to improve working conditions. The running device is mainly composed of transmission mechanism, frame, coupler, disc spring, brake device, etc. The transmission mechanism is two sets, each drive a pair of wheelsets, each set is connected to the horizontal reducer by the motor through the cardan shaft, the final gear of the reducer is split, and the assembly is rigidly connected with the wheel shaft, the connection of the transmission mechanism and the frame is semi-rigid, semi-elastic connection, and the air shoe brake is provided to apply to the slow running when the focus is connected. The frame is a steel structure welded mainly from low alloy steel with high strength and stiffness. The support of the wheelset and the frame is elastic, and the combined disc spring is adopted. The bearing box is a guide frame and placed in the guide frame of the frame. The frame is placed on the bearing box through the disc spring. In order to achieve good braking effect, pneumatic brake shoe brake and disc brake are used to brake together, and the brake shoe material is selected high phosphorus cast iron.

FAQ

Q: What can you do if the machine is broken?

A:Our machine's warranty period is 12 months. if the broken parts can't repair, we can send the new parts to replace the broken parts, but you need to pay the shipping cost by yourself. if the warranty period is expired, we will negotiation for solving the problems, and we supply the technical support for the whole life of the equipment.

Q: Do you have overseas engineers?

A:Yes, we provide overseas engineers, but also support technical training.

Q: Can one machine only produce one size?

A:It’s depends on the machine parameters.

Q: Can you be responsible for transport?

A:Yes, we will provide the best shipping methods according to your address. we have rich experience in transport.

Electric locomotive underground mine tunnel driving battery locomotive

Q: You are a trade company or manufacture?

A:We are a Manufacturer.
