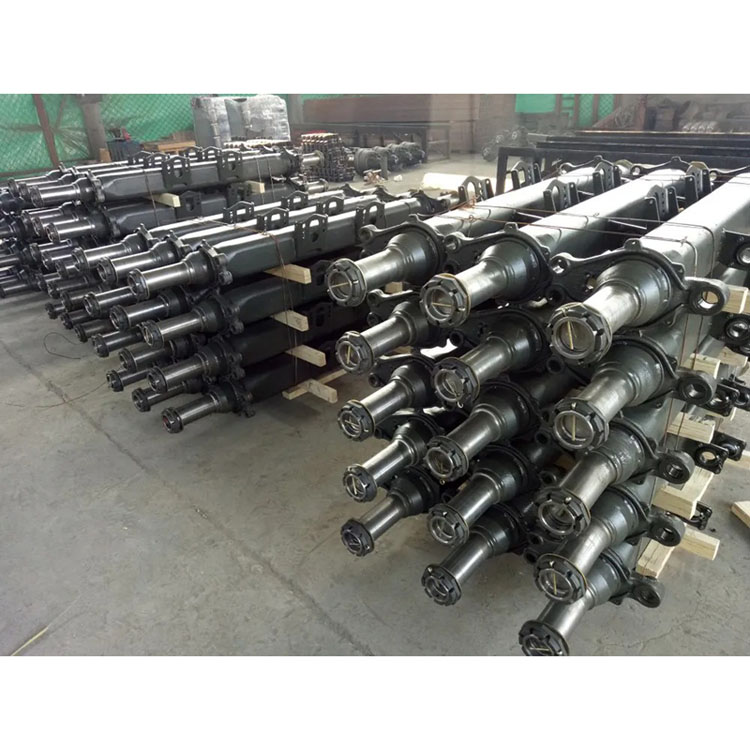

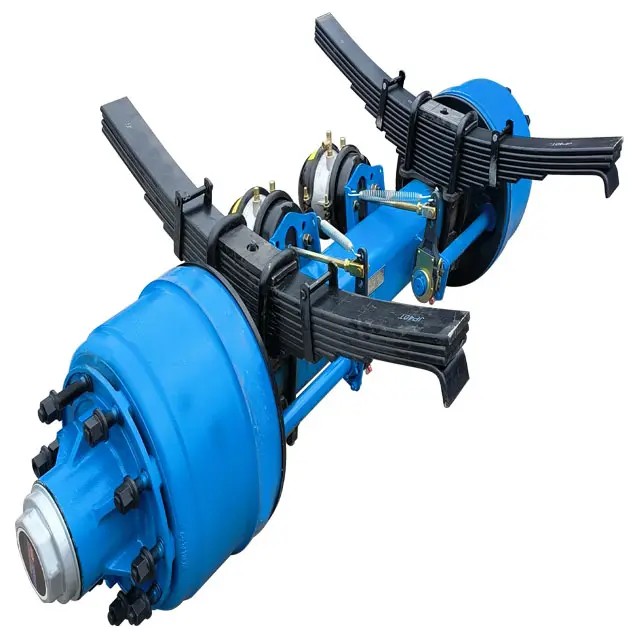

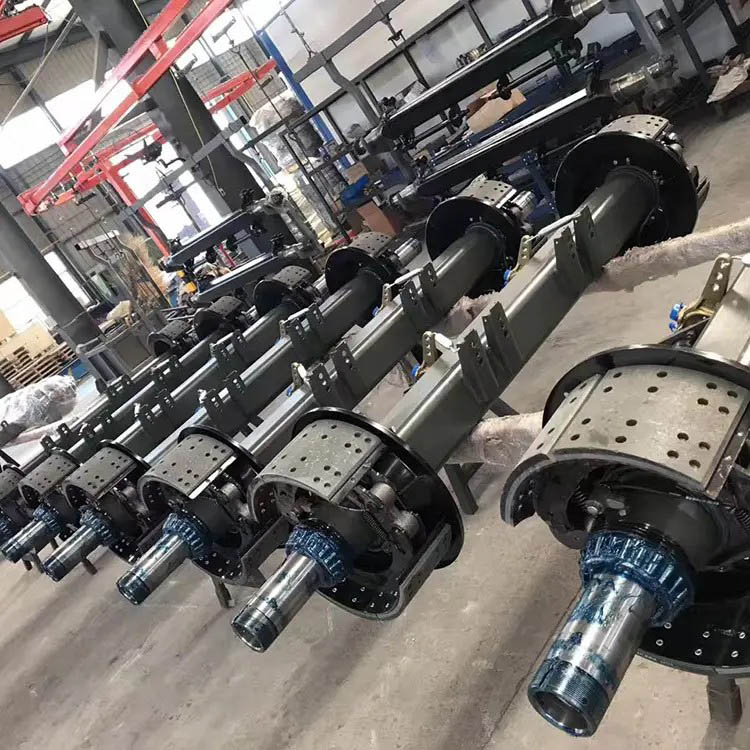

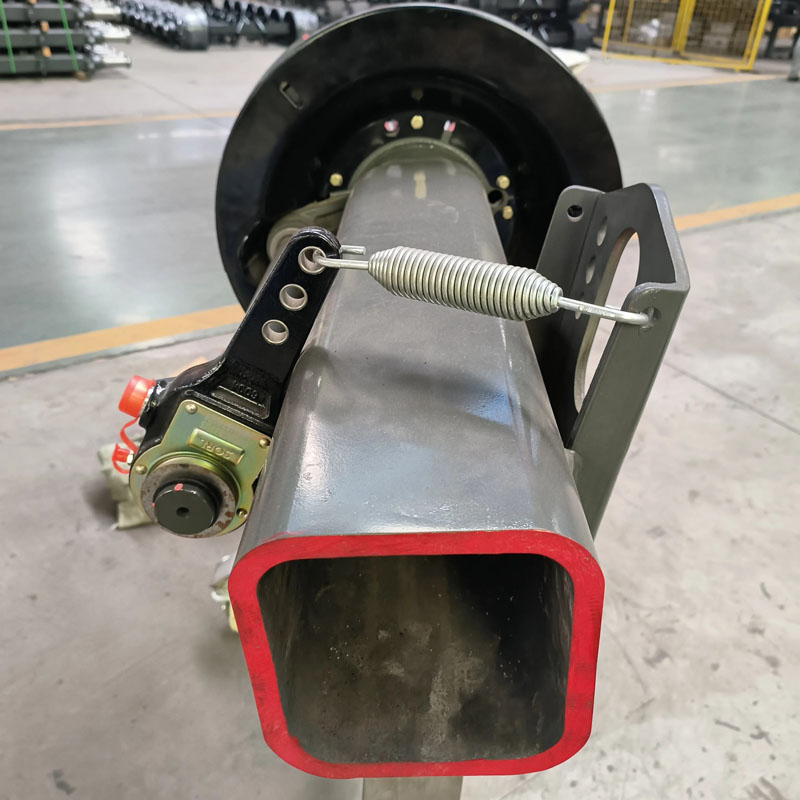

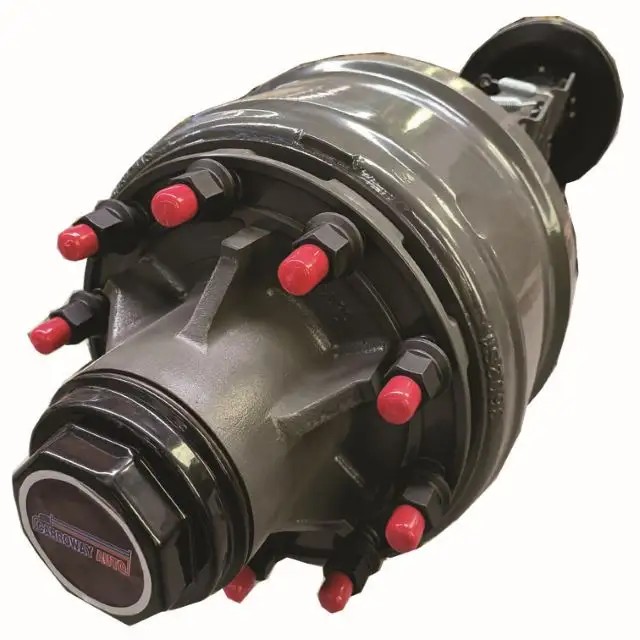

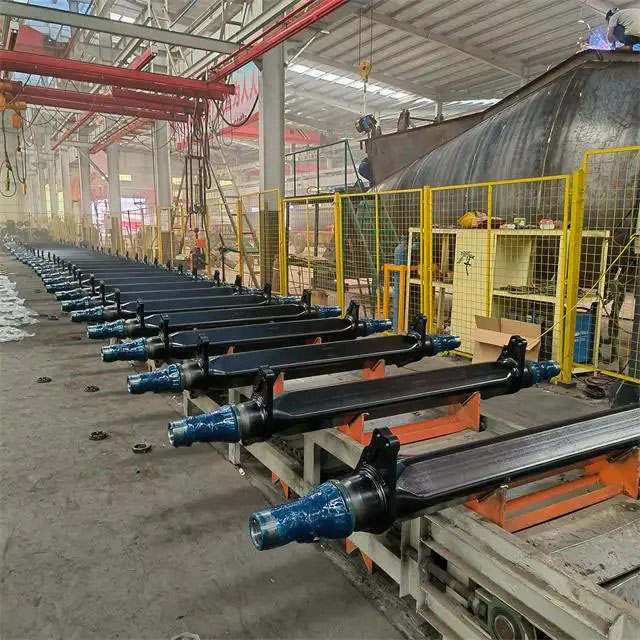

Sinotruk HOWO Heavy Duty Truck Axles are made of high-quality materials to ensure long service life and wear resistance in harsh conditions.
Size:Standard Size
Material:steel
Brake Size:Standard Size
Color:Customer Demands
Package:as customer need
Sinotruk HOWO Heavy Duty Truck Axles are designed with innovative technologies to improve fuel efficiency and reduce maintenance costs, thereby improving overall operational efficiency. Sinotruk HOWO Heavy Duty Truck Axles stand out for their strength, efficiency and adaptability, making them an important component of heavy-duty truck operations.
Specification of Sinotruk Howo Heavy Duty Truck Axle
Model |
Brake Size (mm) |
P.C.D(mm) | Axle Tube(mm) | Track(mm) |
Spring Center (mm) |
HY - 13T | 420*180 | 335 | Square150 | 1840 | 950 |
HY - 13T | 420*180 | 335 | Round/Square127 | 1840 | 930 |
HY - 14T | 420*220 | 335 | Square150 | 1840 | 930 |
HY - 16T | 420*220 | 335 | Square150 | 1840 | 940 |
HY - 20T | 420*220 | 335 | Square150 | 1840 | 940 |
Model |
Capacity (kg) |
Track (mm) |
Axle Tube (mm) |
Brake Size | PCD(mm) |
Total Length (mm) |
Recommended Wheel |
CRW-12T | 12000 | 1840 | ○127 | 420*180 | 335 | 2165 | 7.5V-20 |
CRW-14T | 14000 | 1840 | ○127 | 420*200 | 335 | 2185 | 7.5V-20 |
CRW-16T | 16000 | 1850 | □150 | 420*200 | 335 | 2185 | 7.5V-20 |
CRW-18T | 18000 | 1850 | □150 | 420*220 | 335 | 2185 | 7.5V-20 |
