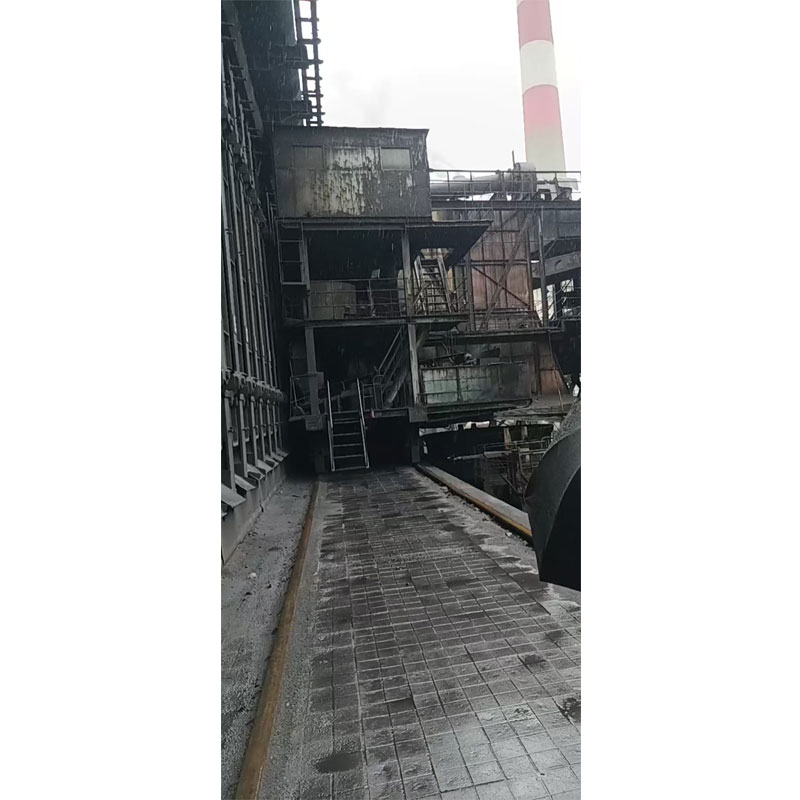

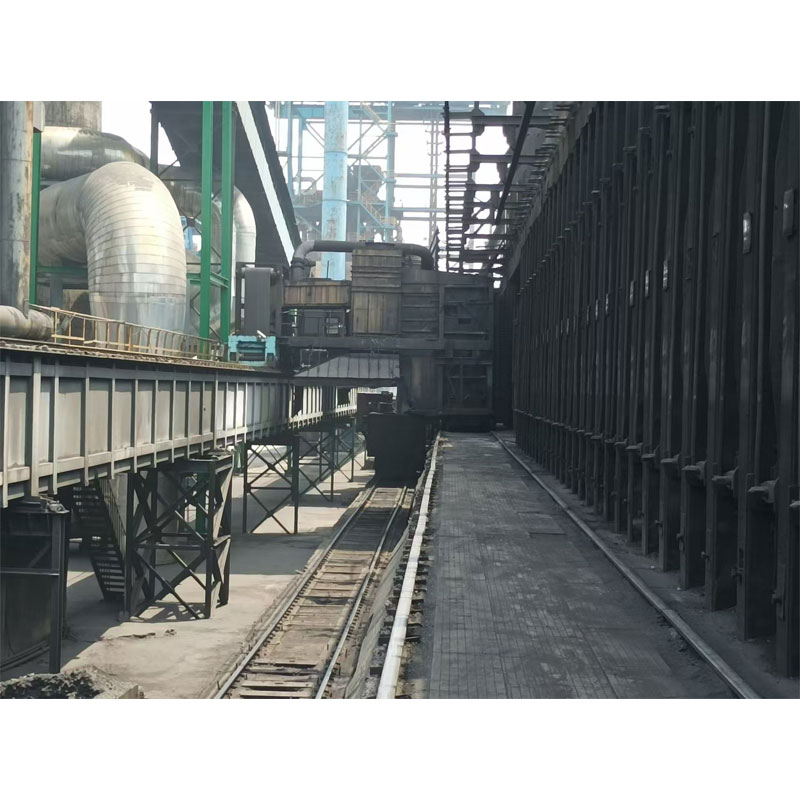

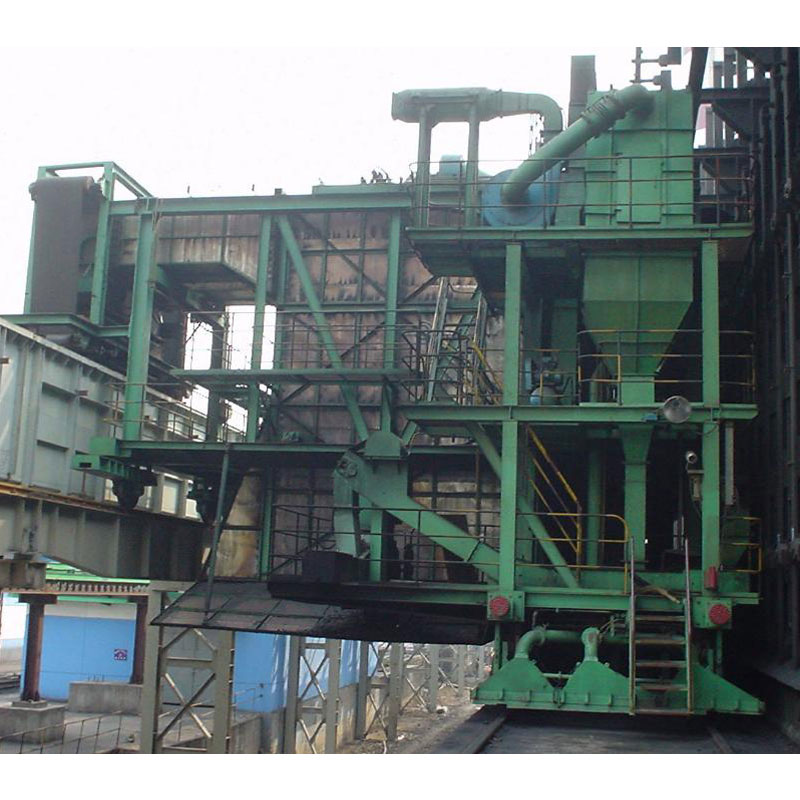

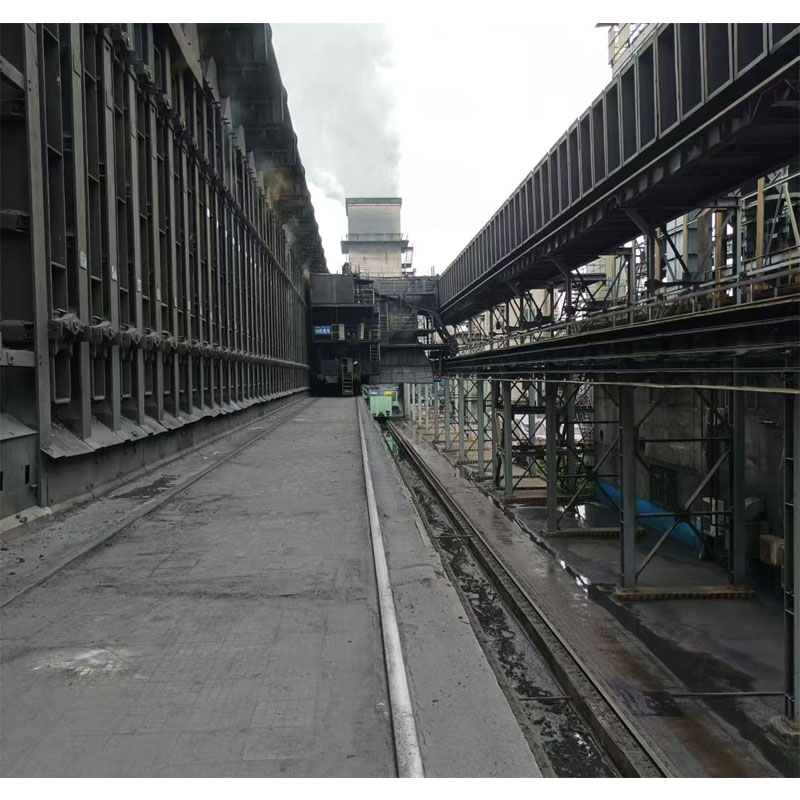

Lano Machinery is a professional leader China Coke Separator for Coking Industry manufacturer. Welcome to contact us.
Production Capacity:20000 sets per year
Dimension(L*W*H):According to different models.
Product Name:Heavy Medium Cylcone, Dense Medium Cyclone
Material:Carbon Steel & Ceramic Liner
Color:Customized Making
Application:Coal Mining
Heavy Medium Cyclone/ Dense Medium Cyclone
Heavy medium cyclone is an efficient device for coal washing which separates products of different densities like clean coal and gangue with magnetite and water suspension liquid as “medium”.
By difference of products, it can be divided into two product heavy medium cyclone (clean coal and gangue) and three product heavy medium cyclone (clean coal, middlings and gangue), while the latter can be further divided into with pressure and with non-pressure by difference of feeding.
Three product heavy medium cyclone
Two cyclones in series-produces clean coal, middlings and gangue with single medium system by centrifugal force; it is widely applied in raw coal washing process, pre-desliming washing process and etc. It can be divided into with pressured feeding and with non-pressured feeding.
Specification |
Diameter (mm) 1st Stage |
Diameter (mm) 2nd Stage |
Feeding Size (mm) | Pressure (MPa) | Capacity (t/h) | Volume Capcity (m³/h) |
WTMC600/400 | 600 | 400 | ≤30 | 0.06~0.10 | 40~60 | 250~350 |
WTMC710/500 | 710 | 500 | ≤35 | 0.08~0.12 | 60~100 | 350~450 |
WTMC850/600 | 850 | 600 | ≤45 | 0.10~0.14 | 100~160 | 500~650 |
WTMC900/650 | 900 | 650 | ≤50 | 0.12~0.16 | 120~180 | 600~800 |
WTMC1000/710 | 1000 | 710 | ≤55 | 0.15~0.18 | 160~220 | 800~1000 |
WTMC1100/780 | 1100 | 780 | ≤60 | 0.18~0.22 | 200~280 | 900~1200 |
WTMC1200/850 | 1200 | 850 | ≤70 | 0.20~0.28 | 260~350 | 1200~1400 |
WTMC1300/920 | 1300 | 920 | ≤80 | 0.24~0.30 | 320~400 | 1400~1800 |
WTMC1400/1000 | 1400 | 1000 | ≤90 | 0.28~0.36 | 400~500 | 1800~2200 |
WTMC1500/1100 | 1500 | 1000 | ≤100 | 0.32~0.40 | 500~600 | 2200~2600 |
Product details
Three-product heavy medium cyclone with non-pressured feeding
Advantages:
1. Maximum size: WTMC1500/1100mm;
2. Maximum capacity: 500-600t/h;
3. Second stage with adjustable vortex finder;
4. Ep1≤0.03,Ep2≤0.05;
5. Separation efficiency 93-98%;
6. High-alumina ceramic lining.
